Invented by Born; Andrew Vincent

Radar is an important technology for keeping people and property safe. It helps us track airplanes, ships, cars, and even the weather. But radar is only helpful if we know it will work well in the real world, with all its hills, buildings, and changing weather. This article will help you understand a new patent application for a radar performance analysis system. We will break it down step by step, so you can see why this invention matters and what makes it special.

Background and Market Context

Radar is everywhere. It is used by airports to guide planes, by ships to avoid collisions, and by cars to sense other vehicles. People also use radar for search and rescue, for weather forecasting, and for keeping track of drones or satellites. Even delivery robots and self-driving cars use radar to “see” the world around them.

But radar is not perfect. Its performance changes depending on where it is, what is nearby, and even the weather. If a radar is placed behind a tall building or a mountain, its signals might not reach where they are needed. If it is raining or foggy, the radar might not see as far. If something is moving fast, like a plane or a car, the radar might need to adjust how it works. If we do not know exactly how well a radar is working, bad things can happen—like missing a plane on approach, or not finding a lost boat.

Until now, figuring out how well a radar would work in a certain place was difficult. Many different computer systems were needed, and they often did not talk to each other. People had to make guesses or use rough numbers, which led to mistakes. Important details like the shape of the land, the weather, or the exact radar settings might get left out. Sometimes, the data was stored in different formats, making it hard to put together a clear picture. This was risky for people who relied on radar for safety.

There is a growing need for a smarter, easier way to predict radar performance. As radar is used in more places—like delivery drones over cities, or autonomous cars in busy streets—knowing exactly where radar works and where it does not is more important than ever. Companies, governments, and even small businesses want a tool that can bring all the important data together, do the needed calculations, and show the results in a way that anyone can understand. This demand is what led to the creation of the radar performance analysis system described in the patent application.

Scientific Rationale and Prior Art

Radar systems send out radio waves. These waves bounce off objects and come back to the radar. By looking at the returned signal, the radar can tell where something is and how fast it is moving. But the signal can be affected by many things.

First, the radar itself has settings that matter. How strong is the signal? How wide is the radar beam? What is the frequency? How fast does the radar scan? All these details make a difference. Second, the environment changes how the radar works. If there are hills, trees, or buildings between the radar and the target, the signal might be blocked or weakened. If it is raining, snowing, or foggy, the signal may not go as far. Even the air itself can change how the signal moves, especially during storms or solar events.

In the past, people tried to guess radar performance using simple models. Some used spreadsheets, others used special software. But these old ways had big problems—they often used rough numbers, ignored important details, or could not handle new data easily. For example, one program might only look at the radar settings but ignore the weather. Another might use old maps that did not show new buildings. Sometimes, people had to copy data by hand from one system to another, which led to mistakes.

Some advanced tools did exist, but they were hard to use and needed powerful computers. They might only work for one kind of radar or one kind of environment. They were not flexible, and they could not update their predictions in real time as things changed. If a radar or a target moved, or if the weather turned bad, the predictions did not keep up.

What was missing was a way to bring together all the key factors: radar settings, target details, landscape, weather, and more. Also missing was a simple way for people to enter or update data, see the results, and use the information to make real-world choices—like moving a radar to a better spot, or changing how it is set up.

This patent application aims to solve these problems. It uses modern computers, smart connections between devices, and up-to-date maps and weather data. It lets people see exactly how a radar will work, right now and in different scenarios, with clear pictures and numbers. It can update its results as things change, making it much more useful than the old ways.

Invention Description and Key Innovations

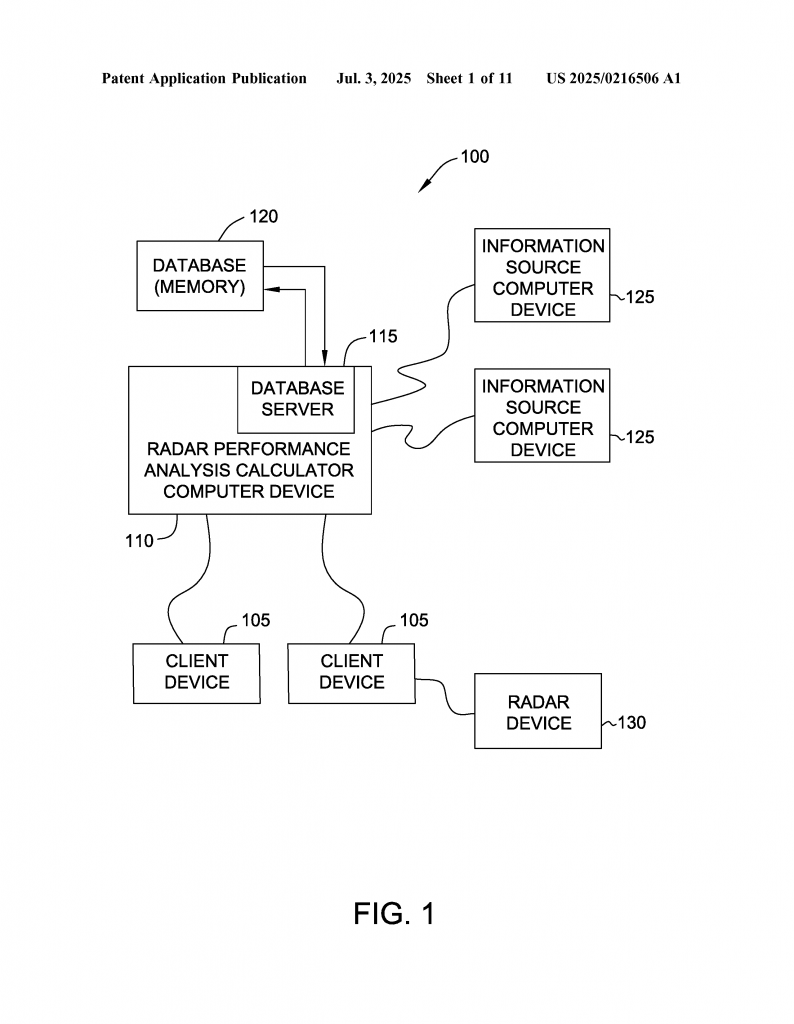

The heart of this invention is a radar performance analysis system that connects different devices—a radar, a user device, and a central server—so they can share information and work together. The system uses a server that can talk to client devices (like laptops, tablets, or smartphones) over the internet. The radar itself can send updates about how it is working to the client device, which then shares the data with the server.

Here is how the system works:

The radar device gathers information about how it is performing. This could include its power, frequency, or other settings. These details can change over time, for example, if the radar adjusts itself to handle new weather or to track a moving target. The radar sends these updates to a client device, which could be a computer or even a phone. This client device talks to the central server over a network, like the internet.

The server collects all the important data: the radar’s current settings, its location, and even updated data as conditions change. It also gets information about the place where the radar is—like hills, trees, buildings, and other possible blockers. It can pull this data from maps, terrain databases, or other sources. The server can also get weather updates for the radar’s location, so it knows if it is raining, foggy, or sunny.

The server then does the heavy lifting. It uses all this information to calculate how well the radar can “see” in different directions and at different distances. It can predict the area that the radar covers and the chance that it will detect a certain target, like an airplane or a car. If the target is moving, the system can keep updating its predictions based on where the target is, where it is going, and how fast it is moving. This means that the results are always up to date.

One of the most helpful parts of the invention is the way it shows the results. The system creates a map with a clear picture of the radar coverage area and the chance of detecting a target. If anything changes—the radar settings, the target’s path, or the weather—the map updates right away. This makes it easy for users to see where the radar works well and where there might be blind spots.

The system can also give more advanced results, like a “receiver operating characteristic curve.” This lets users see how changes in radar settings or the environment affect the quality of detection, not just whether a target can be seen but how reliably it can be found.

This invention has some special features that set it apart:

First, it works with both stationary and moving radars. Whether the radar is on a tower, a ship, a drone, or a car, the system can handle the data and update predictions as the radar moves.

Second, it brings together many types of data—radar settings, maps, weather, target info—and uses them all at once. It can even take in new kinds of data, like XML files or binary data from other systems, making it flexible and future-proof.

Third, the system is offered as a web service. This means users do not need powerful computers or special software. They can access the system from anywhere with a web browser, using a phone, tablet, or laptop. This makes the tool available to more people, from engineers at airports to crews on search-and-rescue missions.

Fourth, the system is built to be updated in real time. If the radar or the target changes location, if the weather shifts, or if new obstacles are built (like a new tower), the system can pull in the new data and update its predictions. This keeps the analysis fresh and reliable.

Finally, the system is designed to be easy to use. The graphical interface lets users enter details in simple ways—by typing in coordinates, picking from a map, or uploading files. The results are shown in clear maps and charts, so even people who are not radar experts can make sense of the information and make good decisions.

The patent application describes how the system works with different devices and types of data, how it does the calculations, and how it presents the results. It even allows for special cases, like checking radar performance for future missions or under different weather conditions.

By making radar performance analysis faster, more accurate, and easier to understand, this invention helps people use radar more safely and effectively. It can help airports choose the best place for a new radar, help ships avoid collisions in bad weather, help rescue teams find missing persons, and help companies make better autonomous vehicles.

Conclusion

The new radar performance analysis system described in this patent application is a big step forward. It brings together all the information that matters—radar settings, terrain, weather, and target details—and puts it to work in real time. The system is easy to use, flexible, and always up to date. It helps people see exactly how a radar will work in any situation, so they can make smarter, safer choices. As radar becomes more common in our daily lives, tools like this will be key to making sure it works as well as we need it to.

Click here https://ppubs.uspto.gov/pubwebapp/ and search 20250216506.
