Invented by CHUNG; Yung Bin, KIM; Jingyu

Today’s electronic devices are everywhere, and our expectations for screen quality, durability, and clarity are higher than ever. Behind every shiny display, there’s a lot of science and engineering, especially when it comes to the window that covers and protects the device’s screen. A new patent application introduces a special type of window designed to keep screens looking bright and colorful—even in tough conditions—and to stop yellowing or other problems that can ruin the look of your device. Let’s explore what makes this new window design special, why it matters, and the science behind it.

Background and Market Context

The world of electronic devices is always changing. Phones, tablets, watches, and even car displays are getting thinner, lighter, and more flexible. We see screens that fold, bend, or curve, and users want them to last a long time without scratches, cracks, or color problems. The window—the outermost layer you touch—plays a huge role in keeping the display safe and looking good.

In the past, device windows were made mostly from glass. Glass is strong, clear, and feels good to touch. But glass can break or shatter, and it isn’t always the best fit for devices that bend or fold. That’s why companies started using new materials, such as thin plastics or hybrid glass-polymer layers. These materials are less likely to break and can bend without damage.

But with these new materials, new problems appeared. Some plastic-based windows can turn yellow around the edges, especially after being exposed to heat, sunlight, or moisture. This yellowing makes the device look old and lowers the quality of the images you see. As devices get more flexible and portable, they are also exposed to more extreme environments—hot cars, humid places, or constant folding and unfolding. Users want their devices to last, look sharp, and feel premium, no matter where they take them.

So, the market demands a window that is not only tough and flexible, but also keeps its clear appearance for years. This is especially true for high-end phones, foldable tablets, and other devices where the screen is the main feature. A window that yellows or loses clarity can ruin the user experience and harm a brand’s reputation.

This is where the patent application we’re discussing today fits in. It addresses these real market needs with a new window design that promises high reliability, even in extreme conditions. The new window doesn’t just protect the screen—it also keeps the display looking bright and natural, while resisting yellowing and discoloration.

Scientific Rationale and Prior Art

To understand why this patent matters, we need to look at the science behind device windows and what solutions have been tried before.

The main job of a device window is to protect the display panel underneath from scratches, drops, moisture, and dirt. But the window also needs to let light pass through without distortion and avoid changing the colors you see. If the window gets scratched, turns yellow, or changes the way light passes through, the display quality suffers.

Older device windows used only glass. Glass is clear and hard, but it breaks easily. When devices started to fold or bend, companies turned to plastic films like PET (polyethylene terephthalate) or PI (polyimide). These plastics are flexible and light, but they have their own problems: they scratch more easily than glass and, worse, can turn yellow over time—especially when exposed to heat or UV light. This yellowing usually starts at the edges, making the device look worn and affecting how images appear.

To solve this, engineers tried to add coatings to the plastic films. These coatings are thin layers of materials like aluminum oxide (AlO_x), silicon oxide (SiO), or titanium oxide (TiO_x). Aluminum oxide, in particular, is known for being tough and resistant to moisture. By adding a thin layer of AlO_x on top of a plastic film, you can make the window more durable and stop water or oxygen from getting in.

But just adding an AlO_x layer is not enough. If the layer is too thin, has tiny holes, or is not dense enough, it can let in moisture or start to break down under heat, leading to yellowing or cloudiness. The way the layer is made—its thickness, how tightly packed it is (its density), and what other elements are mixed in—makes a big difference.

Another problem is contamination. Sometimes, during the process of making these coatings, unwanted elements like fluorine (F) can sneak in, especially if the machines are not perfectly clean. When fluorine gets into the AlO_x layer, it can form compounds like aluminum fluoride (AlF₃), which attracts moisture. This makes the layer more porous and more likely to degrade, especially at high temperatures.

Previous patents and research have tried to address these problems by tweaking the layer materials, adding extra protective layers, or changing the manufacturing process. Some designs use several stacked layers, alternating between materials that bend light less (low refractive index) and those that bend light more (high refractive index) to improve color and reduce glare. Others add organic layers to absorb impacts or make the window feel smoother.

Despite all this work, yellowing at the edges or a drop in display quality over time is still a big issue—especially as devices get thinner, more flexible, and are used in harsher conditions. The patent application we’re reviewing builds on all this prior science, but introduces new ways to ensure the window stays clear and strong, even after years of use in tough environments.

Invention Description and Key Innovations

The new patent application sets out a special window structure for electronic devices, with a focus on high reliability and color stability. Here’s what makes this invention stand out.

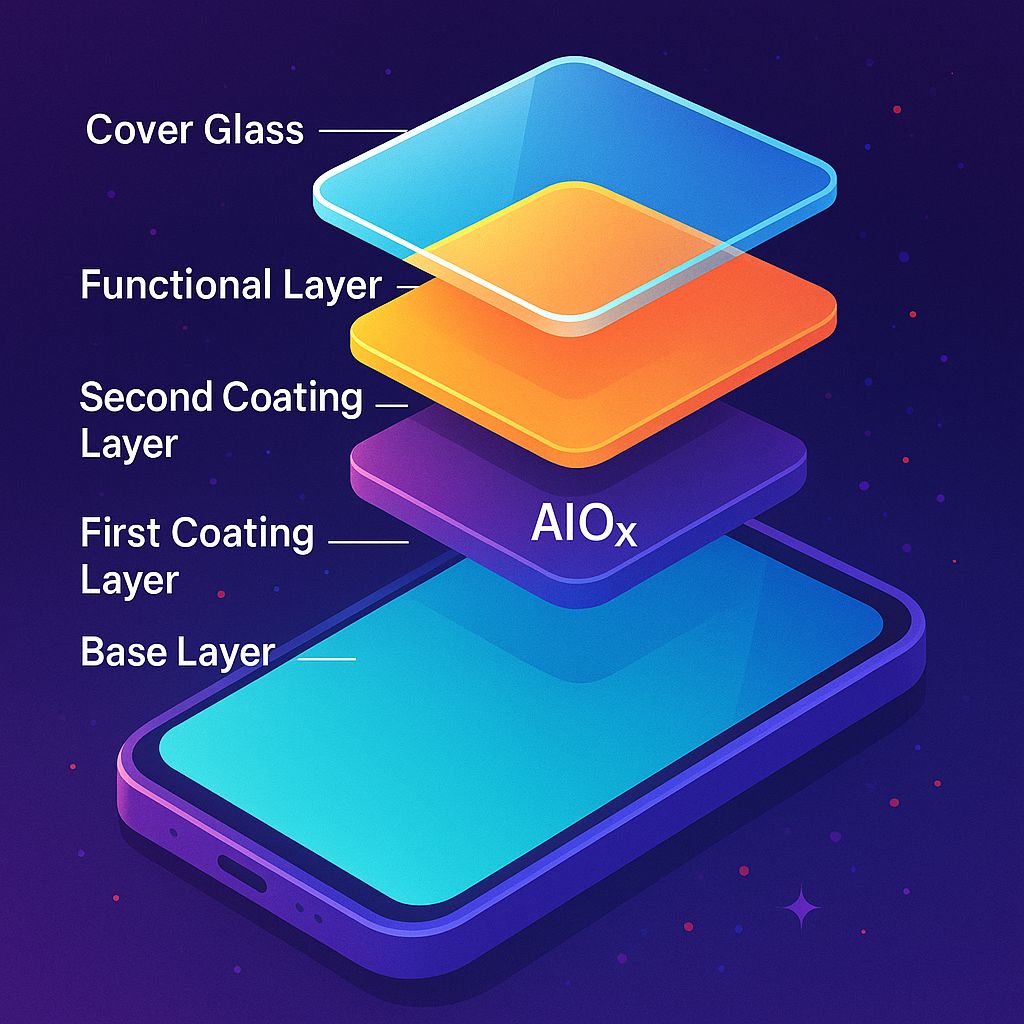

First, the window is made of several layers stacked together. At the base is either a plastic film (like PET) or glass. On top of this base layer sits the most important part: the functional layer. This functional layer is made up of at least two coatings, each with a specific purpose.

The first coating layer is made of aluminum oxide (AlO_x). The big innovation here is controlling how dense this layer is. The patent states that the layer must have a density of at least 2.0 grams per cubic centimeter (g/cm³), and, for best results, at least 2.3 g/cm³. This dense AlO_x layer acts as a barrier, stopping moisture and oxygen from reaching the plastic below, and keeping the window clear and strong.

Why is the density so important? If the layer is not dense enough—say, below 2.0 g/cm³—it will have microscopic gaps or pores. These gaps let in moisture and allow the layer to break down when exposed to heat or humidity, leading to yellowing at the edges. By insisting on a higher density, the inventors make sure the layer is tightly packed, with very few gaps, so it protects the window even when the device is in a hot car or a humid room.

Another key point: the first coating layer should have very little or no fluorine contamination. If fluorine is present, it must be at a very low level—so low that, when measured by a tool called X-ray photoelectron spectroscopy, the signal for fluorine is 5×10² counts per second or less. This strict control on fluorine stops the formation of AlF₃, which can ruin the protective properties of the layer.

On top of the first AlO_x coating, there’s a second coating layer made from inorganic materials. This second layer can have a special structure, using alternating sub-layers of low and high refractive index materials—usually SiO (for the low index) and TiO_x (for the high index). These layers help control how light passes through the window, reducing reflections and improving color accuracy. The sequence of layers—low, high, low, high, low—helps fine-tune the way the window handles light, so images look crisp and colors stay true.

In some versions, a third coating layer is added on top of the stack. This layer is organic and often made of silicon oxycarbide (SiOC), which is known for its toughness and impact resistance. This top layer helps protect the window from scratches or bumps, making the device last longer.

The thickness of the functional layer is also carefully controlled, usually between 295 and 365 nanometers. The AlO_x layer itself is quite thin—about 26 to 40 nanometers—but that’s enough to provide strong protection if the density is high.

The inventors proved that this design works by running tests where they put the window in hot water (90°C) and checked for yellowing at the edges. Windows with the dense AlO_x layer (2.3 g/cm³ or higher) did not yellow, even after these tough tests. Windows with less dense AlO_x (around 2.0 g/cm³ or lower) started to yellow after the test, proving the importance of the density requirement.

They also checked how much the color of the window changed by measuring something called the color difference (ΔE). A ΔE of less than 1 means almost no visible change, while values above 16 show a lot of yellowing. The new window design kept ΔE below 1, while older designs with more fluorine or lower density showed much higher color changes.

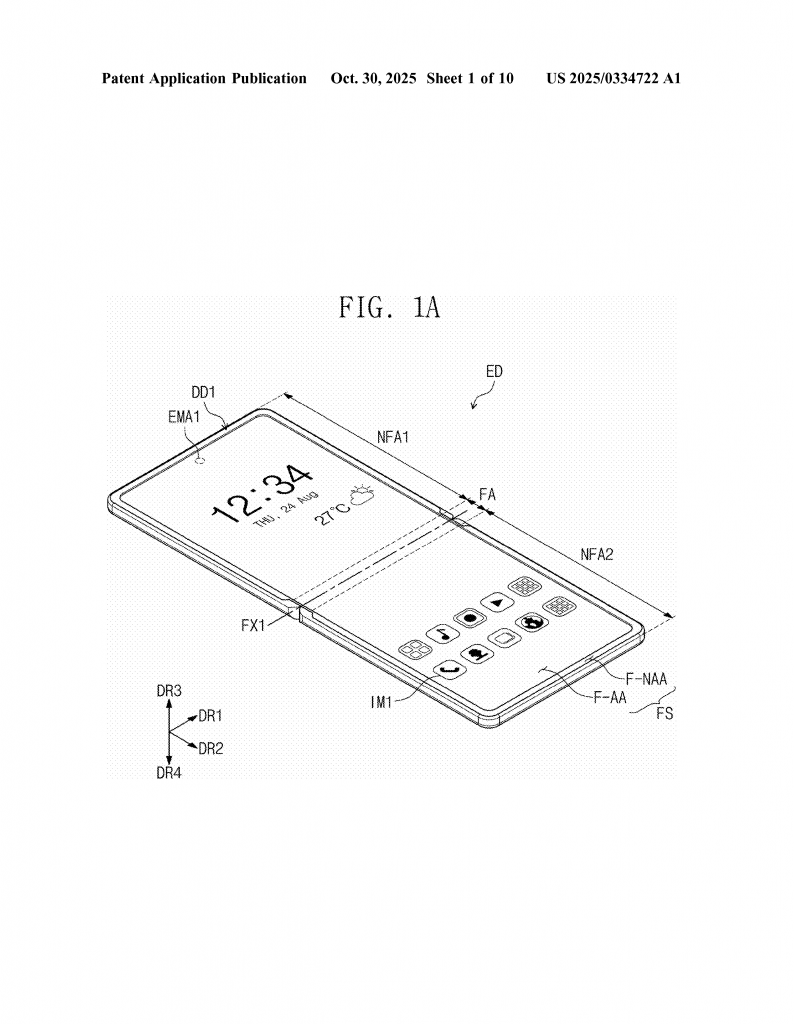

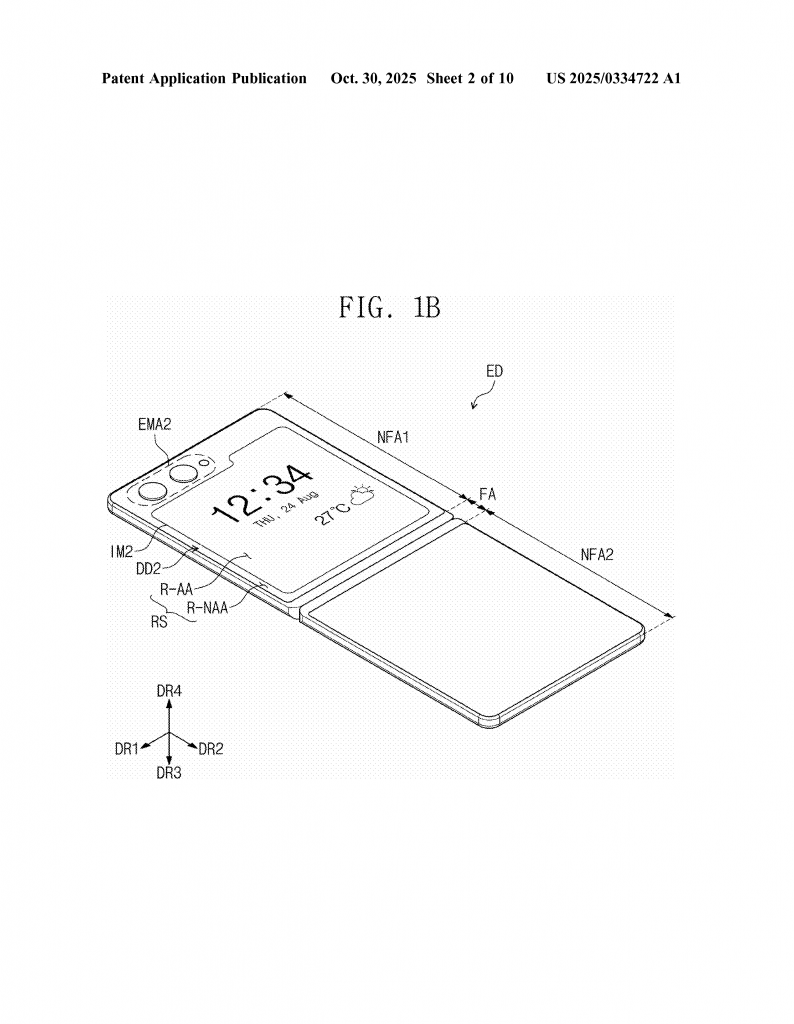

Finally, this window structure is designed to be compatible with both flat and foldable devices. It can be used on top of flexible displays, as well as more traditional flat screens. The layers are thin enough not to add bulk, and the materials are chosen to work together for long-term reliability.

Conclusion

This patent application takes a hard look at a real problem—keeping device windows clear and color-true over years of use in all kinds of environments. By focusing on the density and purity of the aluminum oxide layer, and using smart combinations of light-controlling coatings, the inventors have created a window that stays reliable, looks great, and protects your device’s display. This kind of innovation matters because it keeps our phones, tablets, and other screens looking sharp and lasting longer, no matter where we take them.

For device makers, this invention offers a clear, actionable path to better product quality and fewer returns or complaints about yellowing screens. For users, it means devices that keep their “like-new” appearance, even after years of use. The science is solid, the solution is practical, and the benefits are easy to see—literally.

Click here https://ppubs.uspto.gov/pubwebapp/ and search 20250334722.
