Invented by Zhang; Yan, Mehrnoush; Morteza, Lan; Zhou, Batra; Anuj

Wireless connections are everywhere today. They help our phones, tablets, and computers talk to each other and to the internet. But sometimes, making all these different gadgets work together can be tricky, especially when they do not all speak the same “language” or use the same rules for connecting. A new patent application introduces a clever way for wireless devices to check their messages faster and more safely, which could help your devices work better and save energy. Let’s explore what this invention is about, how it improves on older technology, and what makes it special.

Background and Market Context

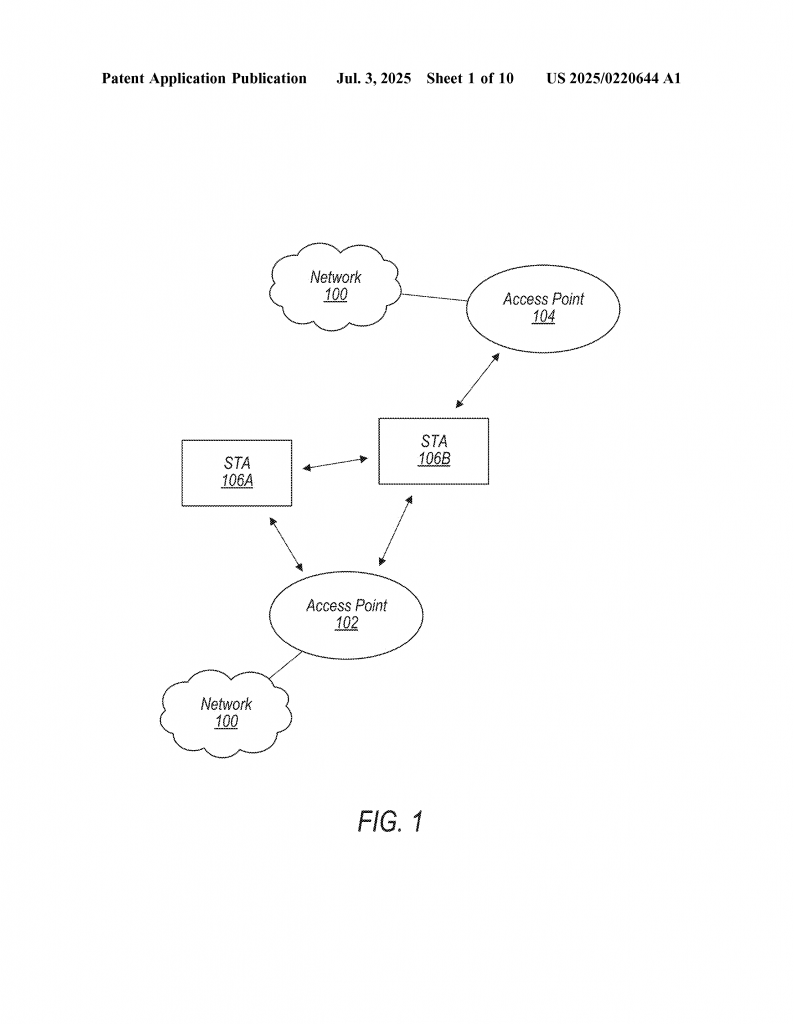

If you use Wi-Fi at home or in public places, you are using a wireless local area network (WLAN). These networks allow many different devices—phones, tablets, laptops, watches, and even cars—to connect and share information without wires. The device that gives out the Wi-Fi signal is called an access point (AP). The other devices, like your phone or laptop, are called stations (STAs).

Wi-Fi has changed a lot over the years. New versions come out every few years, with names like Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, and now even Wi-Fi 7 and 8. Each version brings new features, faster speeds, and better ways to handle many devices at once. But not every device can use all the latest features. For example, you might have a new phone that can use the fastest Wi-Fi, but your older tablet might only work with slower speeds. When these different devices try to connect to the same network, the access point has to juggle them all and make sure each gets what it needs.

Another challenge is making these wireless networks work well in busy places. Imagine a crowded café or airport, where many people want to use Wi-Fi at the same time. The network must keep things running smoothly, even when devices wake up, go to sleep, or switch to different channels to avoid interference. To do this, the access point sends out special messages called control frames. These control frames tell each device what to do—when to listen, when to sleep, when to change channels, and more.

But there’s a catch: before a device acts on a control frame, it has to check if the message is correct and not broken. This is done with a special code called a Frame Check Sequence (FCS). Usually, the device has to wait until the whole control frame arrives—including all the padding and extra info at the end—before it can check the FCS and know the message is safe. This wait can cause delays, use up more energy, and make the network less efficient, especially for devices that need to switch channels or wake up quickly.

As people want more from their wireless networks—faster speeds, less waiting, and longer battery life—there is a big need for better ways to handle these control messages. That’s where the invention in this patent application comes in. It introduces a smarter way to let devices check their messages sooner, so they can start switching channels or waking up without waiting for the whole message. This can make Wi-Fi networks faster, safer, and more flexible, no matter how many devices are connected or how new or old they are.

Scientific Rationale and Prior Art

To understand this invention, let’s look at how wireless messages are usually sent and checked. When an access point wants to tell many devices what to do, it sends out a control frame. This frame has different parts: information for each device, some space for padding (to make sure the timing is right), and at the very end, a Frame Check Sequence (FCS). The FCS is like a digital signature—it helps each device make sure the message has not been broken or changed by accident.

In older systems, the FCS is always at the end. This works fine if devices can wait until the whole message comes in. But some devices, especially those that use special features like enhanced multi-link operation or power-saving modes, need to react quickly. For example, a gadget might need to switch channels or wake up from sleep as soon as it gets its part of the message. If it has to wait for the entire control frame and all the padding, that can waste precious time.

Over the years, some improvements have been made to make Wi-Fi more efficient. For instance, newer Wi-Fi standards let devices share channels, operate on different bandwidths, and save power by sleeping when they are not needed. However, these features sometimes create new problems. If a device can only listen on a small part of the network, or if it needs to wake up fast, waiting for the final FCS at the end can slow everything down. The padding—extra bits added just for timing—makes the waiting even longer.

Some earlier systems tried to address this by rearranging where the padding goes, or by having devices guess when they could act. But these workarounds were not perfect. Devices still had to wait, or risk acting on a message before they knew it was safe. This could lead to errors, wasted energy, or lost data. Also, with so many different types of devices—some brand new, some old—on the same network, it was hard to find a solution that worked for everyone.

The need for a better system has grown as more devices use Wi-Fi for important jobs, like video calls, smart home gadgets, or even cars. These devices cannot afford to wait around or guess if a message is good. They need a way to check their control frames quickly and safely, so they can act right away without risk.

This patent application recognizes these problems and offers a new solution. It introduces the idea of an “intermediate” FCS—a way to check parts of the control frame before the end. This lets devices verify their own instructions as soon as they get them, without waiting for the entire message. The invention also finds clever ways to put this intermediate FCS in the right place, so older devices that expect the FCS at the end can still work as usual, while newer or more advanced devices can benefit from faster checking.

By looking at how messages are built and how devices use them, this invention solves a real problem that older technology could not fix. It lets networks be more efficient, supports a wider mix of devices, and helps everyone get faster, safer, and more flexible wireless connections.

Invention Description and Key Innovations

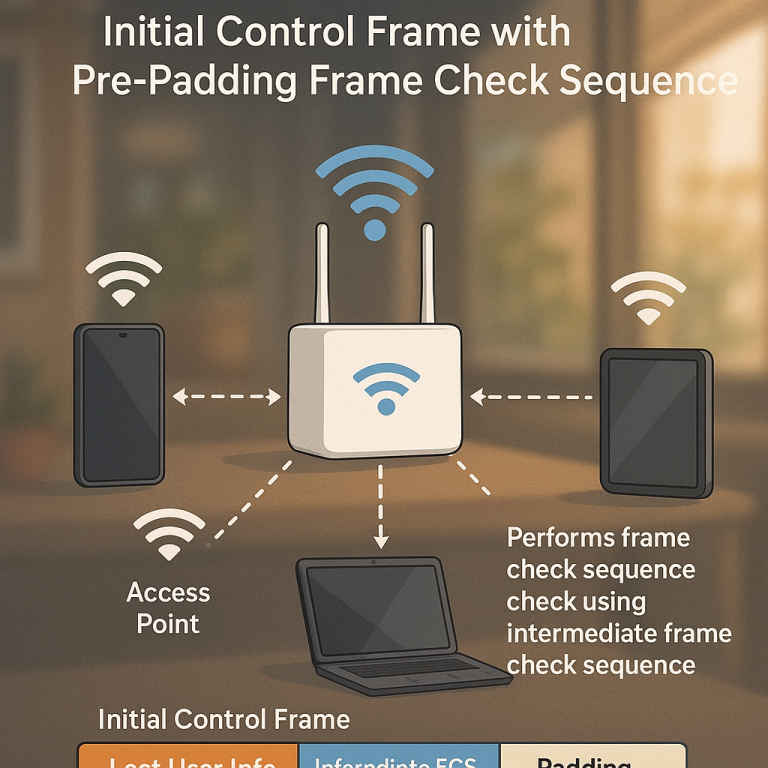

Let’s dive into the heart of the invention and see how it changes the way wireless devices communicate. Imagine you are the access point, sending a control frame to a group of devices. Instead of making every device wait for the whole message and the final FCS at the end, this new method puts an extra FCS—called an “intermediate FCS”—earlier in the message. This means a device can check its own part of the message right away, and if everything matches, it can start working—like switching channels or waking up—without delay.

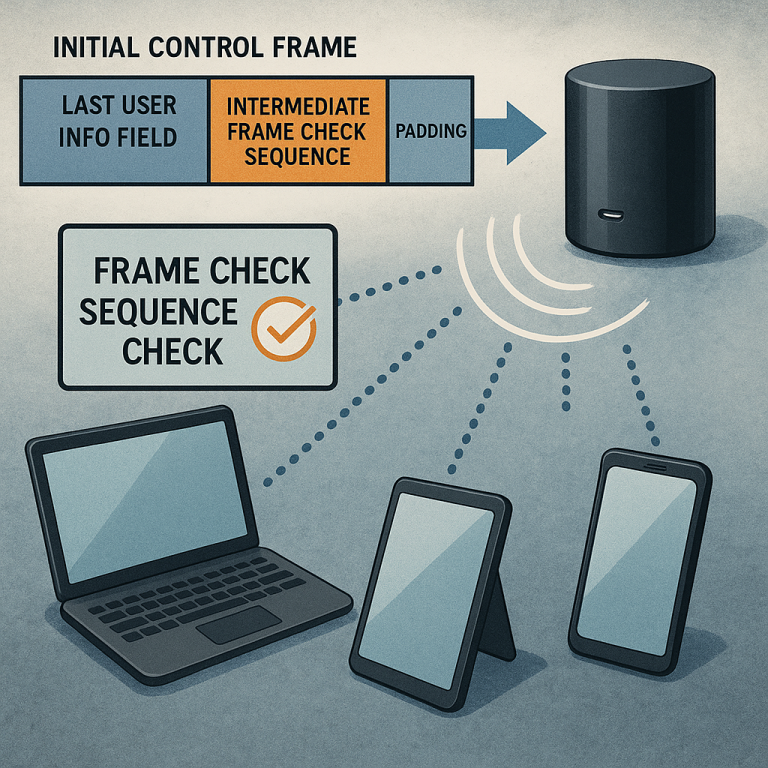

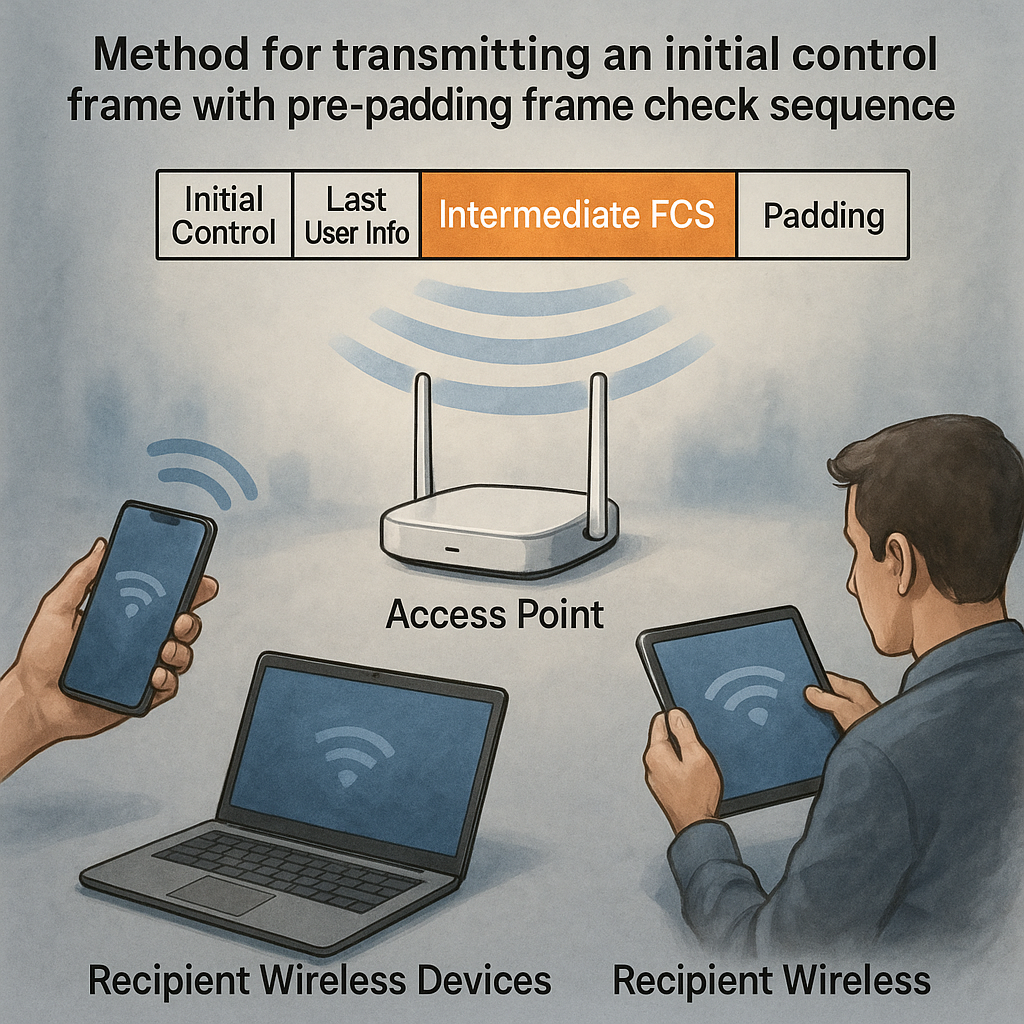

Here’s how it works. The control frame still has all its usual parts: information for each device, some padding for timing, and the final FCS at the end. But now, after the last user info field (the part meant for a device), and before the padding, the intermediate FCS is placed. Sometimes, a special “user info field” is used to make room for the intermediate FCS, and a special value (AID12) in this field tells devices this is not regular user information but a marker for the FCS.

When a device receives the control frame, it can look for its own user info field. If there is an intermediate FCS right after, the device uses the data up to that point to check if the message is good. If it passes, the device does not have to wait for the rest of the frame or the final FCS. It can start changing channels, waking up, or getting ready to send or receive data. This saves time and helps the network run more smoothly.

The invention also gives different ways to create and use the intermediate FCS. The FCS can be made using special math formulas called generator polynomials. The most common are degree 16 or degree 32 polynomials—these are just ways to make sure the FCS is strong enough to catch errors, but not so big that it wastes space. Sometimes, only part of the output is used, like taking 2 bytes out of 4, to fit the FCS into the right spot.

Another smart part of the invention is how the intermediate FCS location is marked. The control frame can use a special code in the common info field, or in a special user info field, to tell devices where to find the FCS. This way, even if the control frame format changes or more devices are added, everyone knows where to look.

For some types of control frames, like multi-user request-to-send (MU-RTS), buffer status request poll (BSRP), or bandwidth queue report poll (BQRP), the invention can add the intermediate FCS in different spots, depending on how much free space is available in the user info fields. If there is not enough space, the invention uses the special field with a unique AID12 value, so devices will not get confused.

One of the best features of this invention is that it works for both new and old devices. Devices that understand the new intermediate FCS can use it to check messages faster, while older devices can ignore it and just use the final FCS at the end, as they always have. This means networks can keep supporting a mix of devices without any problems.

By letting devices check their messages sooner, the invention helps save time and energy. Devices do not have to wait for padding or for the whole message to finish before acting. This makes it easier to support things like fast channel switching, dynamic operation modes, and better power-saving—key needs for modern wireless networks.

The invention also gives the access point more control. It can arrange the order of user info fields based on which devices need more or less time to react, and adjust the amount of padding based on who needs it. This makes the network more flexible and efficient, especially when many devices with different needs are connected at the same time.

In short, this new way of building control frames with an intermediate FCS lets wireless devices react faster and more safely, without waiting for the whole message. It supports both advanced and legacy devices, saves energy, and helps networks handle more devices with less delay.

Conclusion

Wireless networks are the backbone of our digital world, connecting everything from phones and tablets to smart cars and home devices. As these networks get busier and more complex, finding better ways for devices to talk to each other is critical. This patent application introduces a simple but powerful idea: by placing an extra check code (the intermediate FCS) earlier in the control frame, devices can get to work sooner, save energy, and make the network run more smoothly.

This approach does not throw out the old ways—it works with older devices while giving new devices a boost. It is a smart, flexible solution to a real problem faced by wireless networks today. By understanding both the challenges and the science behind this invention, network designers, device makers, and users can look forward to Wi-Fi that is faster, safer, and ready for the future.

Click here https://ppubs.uspto.gov/pubwebapp/ and search 20250220644.
