Invented by AHOVI; Elie Eyram, WITT; Eric Paul, SANDOVAL; Paul Ryan, Microsoft Technology Licensing, LLC

Headsets are everywhere in our daily lives, from work calls and online classes to gaming and music. Yet, anyone who’s worn a headset for hours knows that head comfort is often the weakest link. Today, we look at a new patent application that rethinks how headbands can make headsets feel light and easy to wear, even all day long. Let’s break down where this idea comes from, what others have tried before, and how this invention sets itself apart.

Background and Market Context

Headsets have quickly become a must-have in both work and play. People use them to talk, listen, and interact without holding a device. But if you ask frequent users what bothers them most, you’ll often hear the same answer: “My head hurts after a while.” That pain is usually caused by the headband pressing too hard or not fitting right.

For a long time, headset makers tried to fix this problem by adding soft foam under the fabric of the headband. The idea was simple: if it’s softer, it will be more comfortable. But this brought new problems. Foam flattens out over time, causing pressure points. That means the headset feels good at first, but later, it can be even worse. The foam also soaks up sweat and can start to smell. Some brands tried using floating elastic strips above the head, hoping this would spread the weight. But these designs didn’t always fit well, so comfort still depended on the size and shape of your head.

As more people work or play for hours with a headset on, comfort is becoming a key selling point. People want something light but strong, soft but durable, and easy to adjust. They also want a headband that stays cool, doesn’t trap sweat, and keeps its shape. All of these needs are driving new ideas in headset design.

At the same time, buyers are getting smarter. They read reviews, compare features, and look for value. If a headset is uncomfortable, people talk about it online. This means brands can’t afford to ignore comfort anymore. The market has spoken: headband comfort is as important as sound quality or battery life.

Scientific Rationale and Prior Art

Let’s look at what headset makers have tried in the past and why these older ideas fell short. Traditionally, headbands used a simple recipe: a hard, curved plastic or metal strip for strength, with a foam pad under a layer of fabric for comfort. This worked for a while, but there were big problems. Foam padding squashes down with use and doesn’t spring back. After a few months, the foam is thin, and the hard band presses right on your head. That’s when you start feeling those sore spots.

Another idea was the “floating band.” Here, an elastic strip or cord would hold the headset up, with the hard band sitting above your head. In theory, this spread the weight out. But in practice, it was hard to get the tension just right. If the elastic was too tight, it squeezed your head. If it was too loose, the headset slipped around. Also, most floating bands were narrow, so if you moved your head, the band could dig in or twist.

Breathable fabrics were another step. Mesh or open-weave cloth helped with sweat and heat. But this didn’t solve the real problem: pressure points and long-term comfort. Even with mesh, the foam underneath would still flatten, and the hard support would still poke through. The result? Most people still couldn’t wear their headsets for more than an hour or two without some discomfort.

Some brands experimented with adjustable bands or replaceable pads. These helped a bit, but didn’t address the core design issues. The same materials and construction methods kept causing the same pain points. The market wanted something truly new: a headband that would not only feel soft but also keep its shape, breathe well, and handle long hours without breaking down.

That’s where the invention in this patent steps in. It takes a fresh look at how headbands are built and how the parts work together. Instead of just swapping out materials, it changes the shape and the way the parts hold each other up. The goal? To create a headband that floats gently on the head, stays cool, and lasts longer than old designs.

Invention Description and Key Innovations

This new headset headband isn’t just a tweak to old ideas. It’s a careful rethinking of how headbands work. Let’s walk through its main features in a way that’s easy to picture, even if you’ve never opened up a headset before.

First, the structure. The headband starts with a strong, curved support piece. This is the backbone, usually made from sturdy plastic or metal. It’s shaped to fit over the top of your head and attaches at both ends to the earcups of the headset. This gives the headset its basic strength and shape.

Next comes the real magic: an elastic band and a piece of fabric, working together in a new way. The elastic band stretches between the ends of the support, forming a gentle, downward curve—think of it as a smile shape when you look at it from the side. This band is not just for show. It’s there to give the headband a springy feel, so it moves with your head and doesn’t press too hard in one spot.

But what keeps the elastic band from digging into your scalp? That’s where the fabric comes in. Instead of sitting on top of the band, the fabric is attached above the elastic and then wraps underneath it, creating a “saddle shape.” Imagine a horse saddle: curved down in the middle, up at the sides. This fabric saddle holds up the elastic from below, so your head never touches the elastic directly. Instead, your head rests on the soft, curved fabric, with the elastic floating just above it, pushing gently down.

The real trick is how these two parts—elastic and fabric—work against each other. The elastic pulls down, creating gentle pressure. The fabric pushes up, holding the elastic in check. This push and pull balance spreads out the pressure, so you don’t get sore spots. It also means the band can flex as you move, instead of feeling stiff or pinchy.

Another clever part is the “airgap” inside the headband. Because the fabric curves away from the support structure, there’s a space between the hard band above and the fabric below. This airgap lets air flow, so your head stays cooler. It also means the band can flex and spring back, keeping its shape over time. The cross-section of the fabric and support forms a C-shape and a D-shape, which helps spread the tension and makes the band strong but soft.

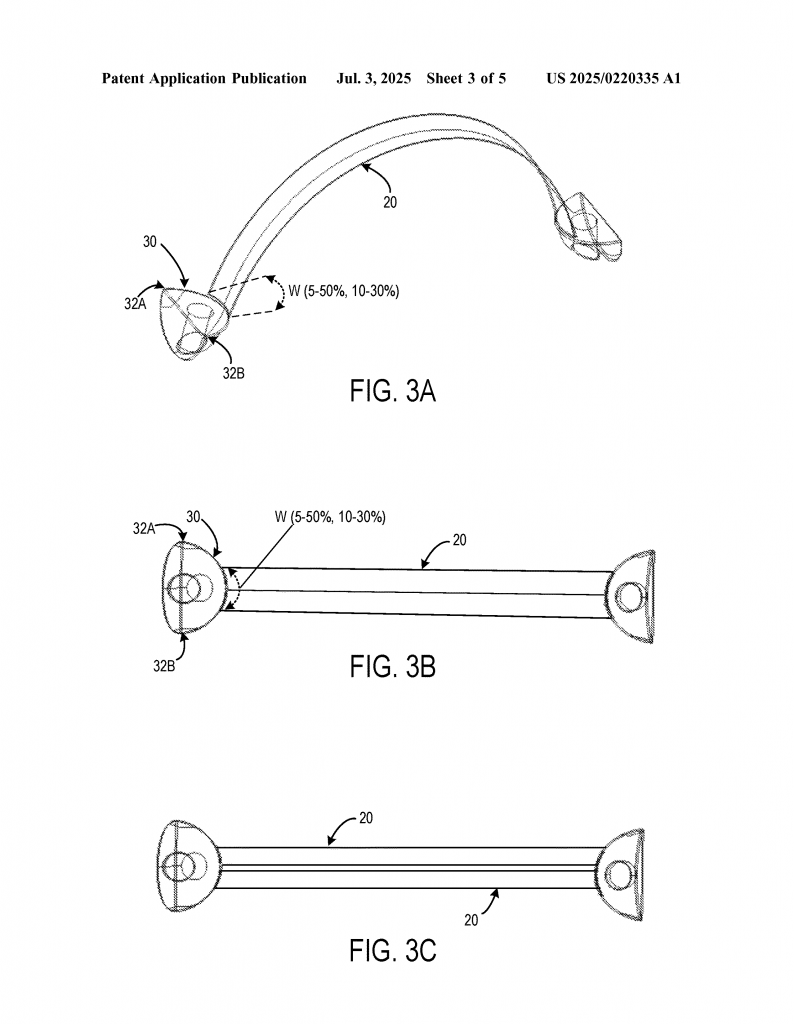

The width of the elastic band is carefully chosen. If it’s too narrow, it feels pointy; too wide, and it might be too flat. This design allows for the width to be set anywhere from 5% to 50% of the distance across the headband, with sweet spots between 10% and 30%. Sometimes, there’s even more than one elastic band, which helps balance the load and makes the fit more even.

The materials are also chosen for comfort and durability. The fabric can be a breathable mesh, which helps with sweat and heat. Both the fabric and the elastic are made to bounce back, so the band keeps its shape for a long time. And—here’s a big plus—they can be removed and replaced. If you want a different feel, need to clean your headband, or want a new look, you can swap out the fabric or elastic easily.

There’s even room for further tweaks. The fabric doesn’t have to be one solid piece. It can have small gaps, letting in more air and making the band lighter. The fabric can be tighter in some spots and looser in others, so you get more support where you need it and more breathability where you get hot. The ends of the support can be shaped to hold the fabric just right, helping the whole band keep its saddle shape.

So, what makes this headband stand out? It’s the way every part works together. The support gives strength. The elastic band gives spring. The fabric gives softness and breathability. The airgap gives cooling and bounce. And the design allows for easy changes and long life. All this means you can wear your headset longer, with less pain and more comfort.

Conclusion

If you use a headset every day, you know how important comfort is. This new headband design solves the old problems by using a smart mix of shapes, materials, and tension. It spreads out the pressure, keeps your head cool, and stays comfy even after long hours. Plus, you can adjust or replace the parts to suit your own needs.

This invention isn’t just about making headsets softer. It’s about making them work better for real people, every day. By rethinking how the headband holds and supports, it opens up new ways to feel good while you listen, talk, or play. If you’re looking for a headset that truly fits and stays comfortable, keep your eye out for this kind of headband. It’s a small change that makes a big difference.

Click here https://ppubs.uspto.gov/pubwebapp/ and search 20250220335.
