Invented by Skarda; Jinhie L., Jain; Mudit, Tu; Yongming

Modern technology continues to push the limits of how we send and receive information. At the heart of this are photonic integrated circuits, which use light instead of electricity to move data. One important part of these circuits is the echelle grating mux/demux. This article will help you understand what these devices are, why they matter, and how a new invention makes them even better.

Background and Market Context

Imagine the internet without fast connections. Every video, phone call, or file we send would crawl at a snail’s pace. The secret to today’s rapid communication is light. Light travels through tiny glass fibers, carrying more data than wires ever could. But moving light this way isn’t easy. It takes special devices to split, combine, and direct each color of light to the right place. These devices are called multiplexers and demultiplexers, or “mux/demux” for short. They work much like traffic officers for light, telling each color where to go.

The echelle grating mux/demux is one of the most popular tools for this job. It takes a bundle of light containing many colors and separates them, or combines single colors into one bundle. This is what allows your favorite streaming service to send movies across continents in seconds. Echelle gratings are used because they handle many colors at once and are small enough to fit inside chips.

But there’s a problem. These mux/demux devices are sensitive. Even tiny changes in temperature, the way they are made, or how they are packaged can throw them off. If the device isn’t just right, your movie might buffer or your video call could freeze. The demand for faster and more reliable data has never been higher, and companies are always looking for new ways to make these devices work better and use less power. The market is huge, with telecom companies, data centers, and cloud services all relying on photonic integrated circuits to stay ahead.

In recent years, the push for smaller and more energy-efficient chips has grown. Every watt saved means less heat, lower costs, and friendlier gadgets. The echelle grating mux/demux must keep up, not just by being accurate, but also by using less energy and working under changing conditions. Solutions that allow these devices to “self-heal” or adjust on the fly are very valuable. This is where the new invention comes in, answering a need felt across the industry.

Scientific Rationale and Prior Art

To see why this invention matters, let’s look at how echelle grating mux/demuxes work. Light moves through narrow paths called waveguides, like cars on a highway. When the light reaches the echelle grating, it bends and spreads out, with each color going in a different direction. The device uses a special area, called the free propagation region, where light is allowed to fan out before it hits the grating. Each color gets sent to its own waveguide, like cars being sent to the right road at a busy intersection.

But here’s the catch: the whole system depends on the refractive index, which is a fancy way of saying how fast light goes through the material. If this index changes, even a little, the mux/demux won’t send the right color to the right place. This can happen if the chip heats up, if there are small errors in how it was made, or if it gets squeezed during packaging. So, engineers need a way to “tune” the device so it always works right, no matter what happens around it.

Older solutions used heaters placed directly over the free propagation region. These heaters would warm up the area, changing the refractive index in a uniform way. While this worked, it had two big problems. First, it used a lot of power, because the entire region had to be heated evenly. Second, this method could only shift the device’s performance in one direction. If the device needed to be tuned the other way, you were out of luck. To play it safe, engineers had to design for the worst-case scenario, which meant even more power was used on average.

Another known approach was to use a single force applicator to squeeze the chip, which could change the refractive index by applying stress. This method also had limits: it could be hard to control, might damage the device over time, and usually could only shift performance one way. In both methods, the core problem was a lack of flexibility and efficiency.

For example, U.S. Pat. No. 11,561,346B2 describes a tunable echelle grating with a heater on top of the free propagation region. This heats the area uniformly but needs a lot of power and has limited tuning range. As markets and technology moved forward, it became clear that a better, more energy-smart, and more versatile solution was needed.

Invention Description and Key Innovations

Now, let’s look at what makes this invention different and why it matters. The heart of the new idea is to create a “monotonic refractive index gradient” in the free propagation region. In simple words, instead of heating the whole region the same way, the invention heats it unevenly—hotter on one side than the other. This creates a smooth change in the refractive index from one side to the other, like a gentle slope rather than a flat field.

Why is this important? Because this kind of gradient can shift the mux/demux’s performance with less energy. It also allows the device to be tuned both ways—either increasing or decreasing the peak transmission wavelength as needed. This means the device can always be adjusted back to its best working point, no matter which way it drifts. The invention also allows for very fine control, helping to keep the device accurate even as conditions change.

The new photonic integrated circuit includes several key parts:

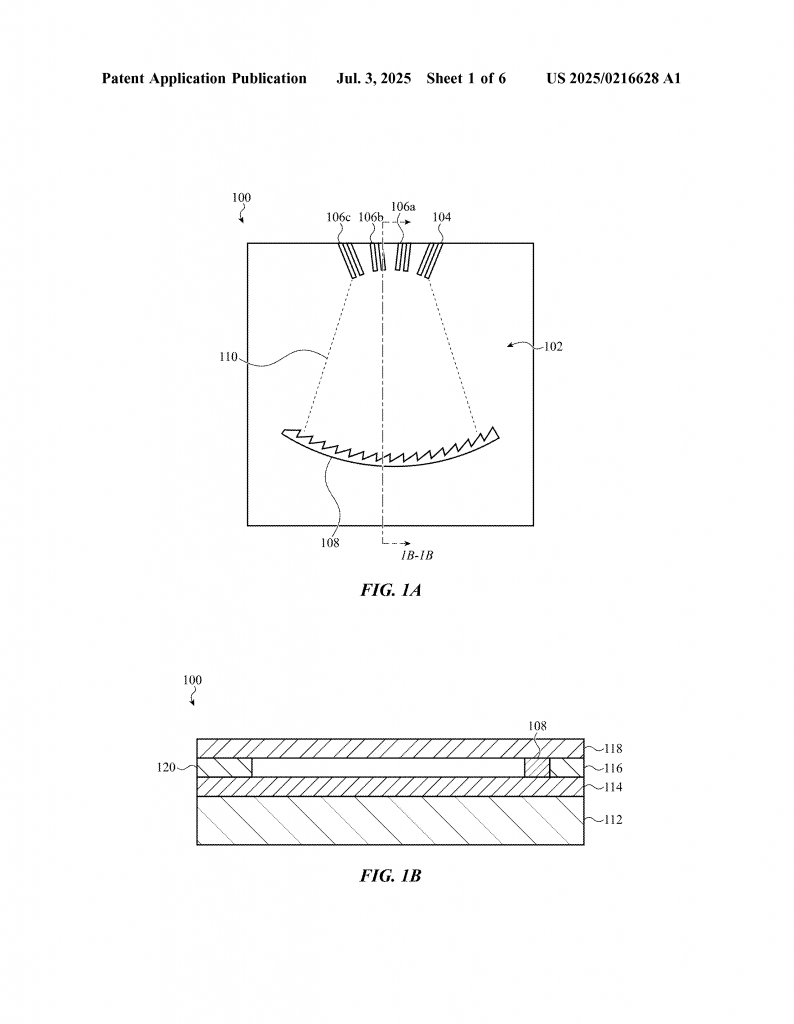

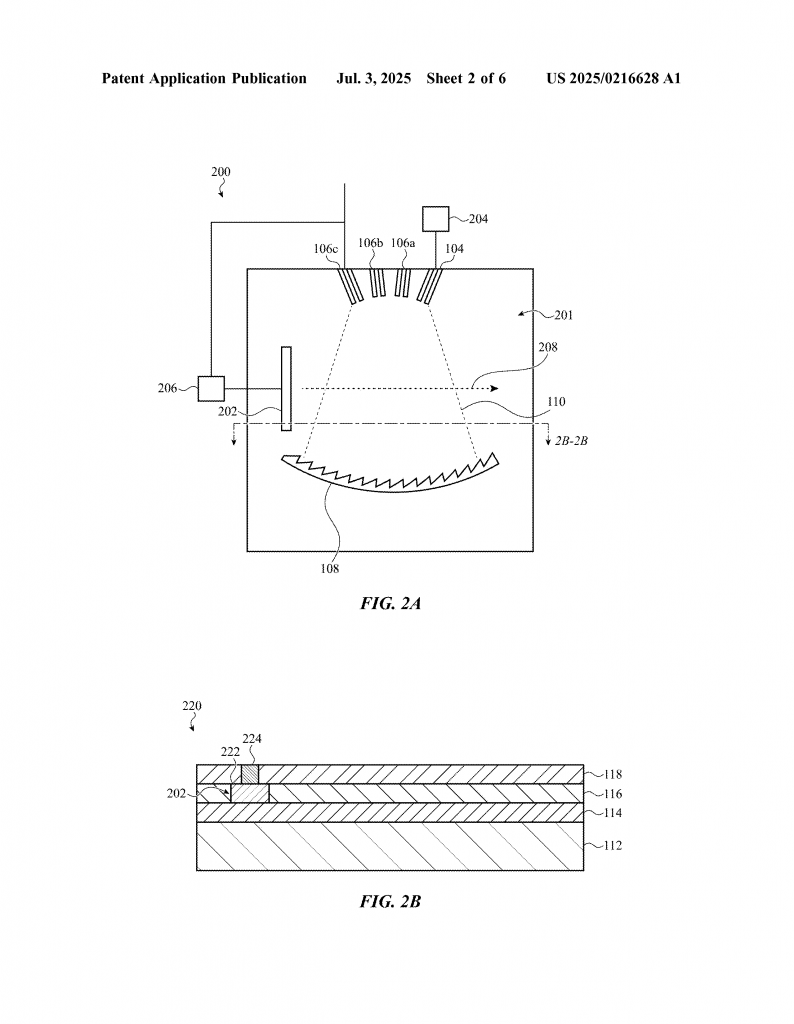

First, the circuit has a set of input and output waveguides, the echelle grating, and the free propagation region between them. Next, it uses one or more heaters placed beside, but not on top of, the free propagation region. These heaters can be made from doped regions in the chip or thin metal layers. By turning one heater on, the region warms up more on that side, making a temperature gradient. Since the refractive index depends on temperature, this creates the desired gradient.

The device can have two heaters—one on each side of the free propagation region. This allows the gradient to slope in either direction. If the device needs to shift the transmission wavelength up, it turns on the heater on one side. If it needs to shift down, it uses the heater on the other side. The heaters can be controlled separately for even more precise tuning.

There’s also a smart controller that keeps an eye on how much light is coming out of the output waveguides. If it sees that the device is drifting off-target, it can turn on the right heater and bring everything back to the best setting. This can be done automatically, making the device almost “self-healing.”

The invention also covers using force applicators instead of, or together with, heaters. These force applicators gently squeeze the chip from one side, creating a stress gradient. This also changes the refractive index in a controlled way. By having two force applicators, one on each side, the device can be tuned both ways, just like with the heaters.

The method of using the invention is simple but powerful. First, the device checks if the peak transmission wavelength has shifted. If it has, the controller figures out which way it moved and turns on the right heater or force applicator. The device then creates the right gradient to bring the performance back to the target. This can be done over and over, keeping the mux/demux working at its best no matter what happens around it.

What stands out about this invention is its low power use. By only heating or stressing one part of the chip, instead of the whole thing, much less energy is needed. The device can also be made smaller and doesn’t have to be over-designed for the worst-case scenario. This makes it cheaper and better for the environment.

The invention allows for more flexible design too. The heaters and force applicators can be placed in different ways, and their sizes can be adjusted for the right amount of control. The chip can be tailored for many different uses, from big data centers to compact devices in your home.

In summary, the new tunable echelle grating mux/demux stands out because it:

– Uses a gradient, not a uniform change, in the refractive index for tuning
– Allows tuning in both directions
– Uses less power and is more efficient
– Provides fine control with smart feedback
– Offers flexibility in design and application

Conclusion

The world relies on fast, reliable light-based communication, and echelle grating mux/demux devices play a vital role. Yet, these devices have long been held back by their sensitivity to small changes and their power-hungry tuning methods. This new invention changes the game. By using controlled gradients in temperature or stress, these devices can quickly and efficiently tune themselves, staying on target with less energy and less fuss. The invention’s clever use of heaters or force applicators, along with smart feedback, means better performance, lower costs, and more reliable connections for everyone, from major telecoms to the gadgets in your pocket. As demand for data keeps growing, solutions like this will be key to keeping us all connected.

Click here https://ppubs.uspto.gov/pubwebapp/ and search 20250216628.
